Introducing the Wi-Fi enabled app controllable pumps from Jebao. These pumps come complete with a dual interface controller allowing the settings of the pump to be adjusted directly from the control unit or remotely via the Jebao Aqua App if connected to a home router or mobile device.
The pump uses sine wave technology and wear resistant impeller ceramic shaft for long, reliable and quiet operation.
Maximum Flow Rates
MDP-2500: 2500L/H
MDP-3500: 3500L/H
MDP-5000: 5500L/H
MDP-6000: 6200L/H
MDP-8000: 8000L/H
MDP-10000: 10000L/H
Included Inlet/Outlet Fittings
MDP-2500: Inlet 25mm / Outlet 25mm
MDP-3500: Inlet 32mm / Outlet 25mm
MDP-5000: Inlet 32/40mm / Outlet 25/32/40mm
MDP-6000: Inlet 32/40mm / Outlet 25/32/40mm
MDP-8000: Inlet 32/40mm / Outlet 25/32/40mm
MDP-10000: Inlet 32/40mm / Outlet 25/32/40mm
Maximum Power Consumption
MDP-2500: 23W
MDP-3500: 28W
MDP-5000: 40W
MDP-6000: 45W
MDP-8000: 65W
MDP-10000: 80W

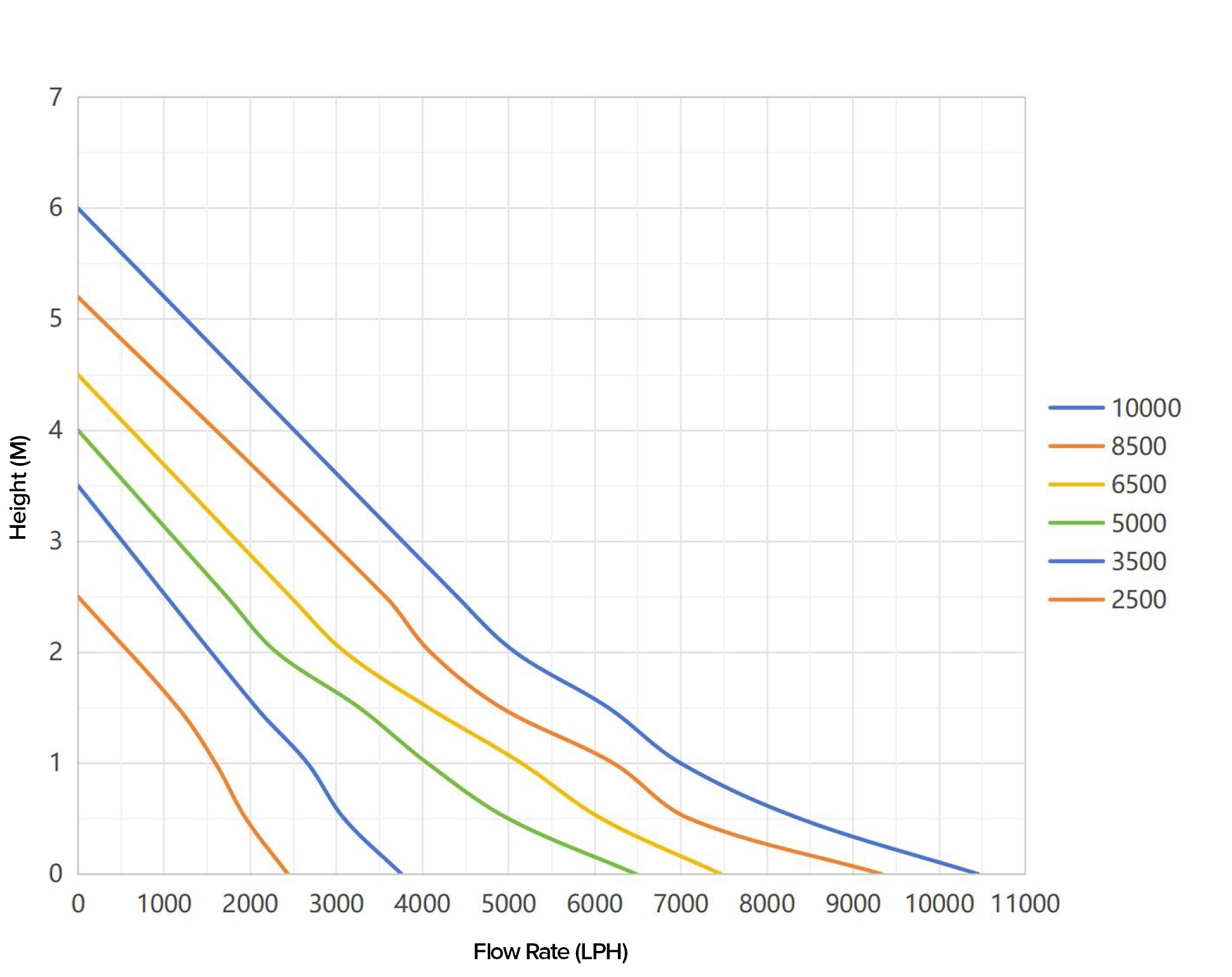

Maximum Head Height
MDP-2500: 2.5M
MDP-3500: 3.5M
MDP-5000: 4M
MDP-6000: 4.5M
MDP-8000: 5.2M
MDP-10000: 6M
A Wi-Fi Status
• Flashing: Controller in smart configuration mode
• Flashing with AP: Controller in AP configuration or Direct mode
• Not flashing: Connected to a router
• Not displayed: Connection with the router has been lost
B Current Maximum Wattage
C Current Power Setting
Can be set between 30 and 100
D Wi-Fi Button
Press and hold to cycle between Smart Configuration mode and AP Configuration mode.
E Up Key
Press to increase the power setting.
F On/Off Button
Press to switch the pump on or off. When switched on the pump will return to its last power setting.
G Down Key
Press to decrease the power setting.
H Pause Button
Tap to set the device into timed feed mode or cancel timed feed mode and return back to normal operation.
The pump is completely controllable in the App and has the option of a ‘Program Mode’ for more complex setup or operation. This function allows different power levels to be set throughout a 24 hour period. Using this it is possible to set night time schedules to create calmer flow, or to have changing conditions through the day.
Feed mode can be added into this daily schedule, pausing the pump at set times for feeding fish, off periods can also be incorporated in the program to stop the pump. If the pump is being run in manual mode it is also possible to change the automatic duration of the feed mode.
